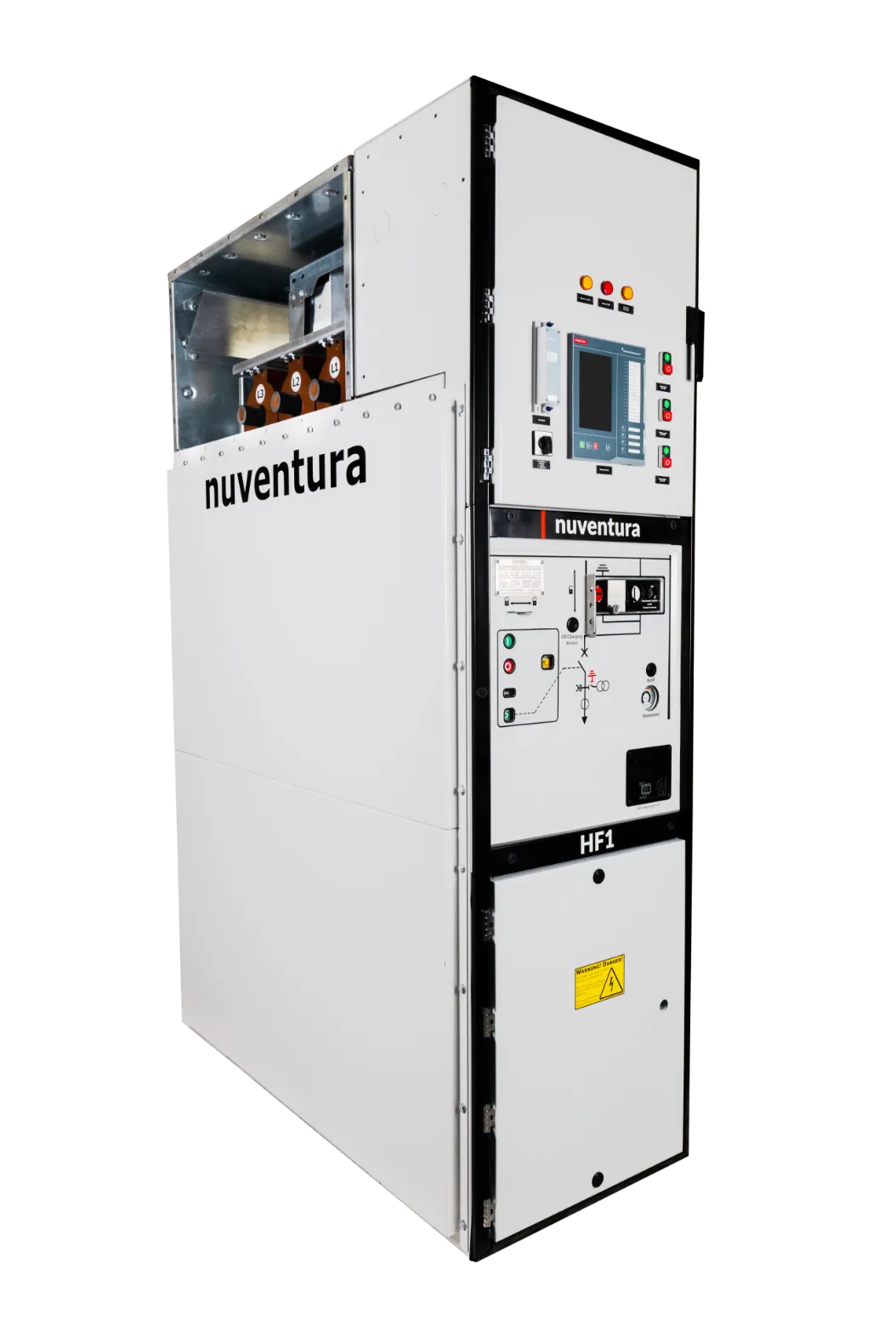

Pioneering SF6-free medium voltage gas insulated switchgear
First-to-market SF6-free GIS for 24kV and 36kV distribution systems using pure dry-air technology while maintaining advantages of traditional SF6 GIS
✓
IEC 62271-200 type-tested
✓
31.5 kA short-circuit rating
✓
Up to 2500A rated busbar current
✓
Available in 50Hz and 60Hz frequency range
✓
Compact dimensions
Trusted by the industry's top innovators
Performance parameters & ratings
Comprehensive technical specifications across both voltage classes, validated in European testing labs according to IEC standards
Technical Data
24kV
36kV
International Technical Standards
IEC 62271-200
IEC 62271-200
Testing Voltage (PF/Impulse)
50/125 kV
70/170 kV
Rated Frequency
50/60 Hz
50/60 Hz
Rated Busbar Current
2500 A
2500 A
Rated Feeder Current
1250/2200 A
1250/2200 A
Rated Short Time Current
31.5 kA for 3 seconds
31.5 kA for 3 seconds
Innovative dry-air architecture
Nuventura's patented technology offers strict compliance with the EU regulation 2024/573 on the ban of F-gases from medium voltage switchgear keeping compact dimensions and lifetime maintenance-free operation. Furthermore we have added new benefits like accessability of the tank for easy upgrades. Our distirbution system is based on standarization and the cooperation with local partners enabling us to deliver within 4-6 months from order.
Busbar Compartment
Engineered with patented components and precision monitoring systems for optimal medium-voltage performance.
1
2
3
4
5
6
7
8
9
10
Busbar Compartment
Solid insulated Busbar with 1250A or 2500A.
Low Voltage Compartment
Low voltage compartment in 800mm or 1000mm height to fit any type of relay.
Drive Mechanism
Drive complete with standard IEC interlocks and if required, also advanced.
Vacuum Circuit Breaker
Nuventura's patented circuit breaker design using vacuum bottles of well know international brands.
Cable Compartment
Outer cone Termination with max 3 cables per phase (1250 A) and 6 cables per phase (2200 A)
Current Transformer
Type tested single and three phase CTs, for seamless cable Bushings and Busbar installation.
Voltage Transformer
Type tested single and three phase VTs for seamless installation in cable and Busbar compartments.
Pressure Relief System
Burst discs priniciple at 3.8 times the max pressure, for safe pressure relief.
Three-Position Disconnector
Nuventura's patented 3PS design for manual or motorized operation.
Pressure Relief Duct
Safe exhaust of gases in internal arc event, through dedicated duct and type tested AFLR configuration.
1
Busbar Compartment
Solid insulated Busbar with 1250A or 2500A.
2
Low Voltage Compartment
Low voltage compartment in 800mm or 1000mm height to fit any type of relay.
3
Drive Mechanism
Drive complete with standard IEC interlocks and if required, also advanced.
4
Vacuum Circuit Breaker
Nuventura's patented circuit breaker design using vacuum bottles of well know international brands.
5
Cable Compartment
Outer cone Termination with max 3 cables per phase (1250 A) and 6 cables per phase (2200 A)
6
Current Transformer
Type tested single and three phase CTs, for seamless cable Bushings and Busbar installation.
7
Voltage Transformer
Type tested single and three phase VTs for seamless installation in cable and Busbar compartments.
8
Pressure Relief System
Burst discs priniciple at 3.8 times the max pressure, for safe pressure relief.
9
Three-Position Disconnector
Nuventura's patented 3PS design for manual or motorized operation.
10
Pressure Relief Duct
Safe exhaust of gases in internal arc event, through dedicated duct and type tested AFLR configuration.
